車型簡介：

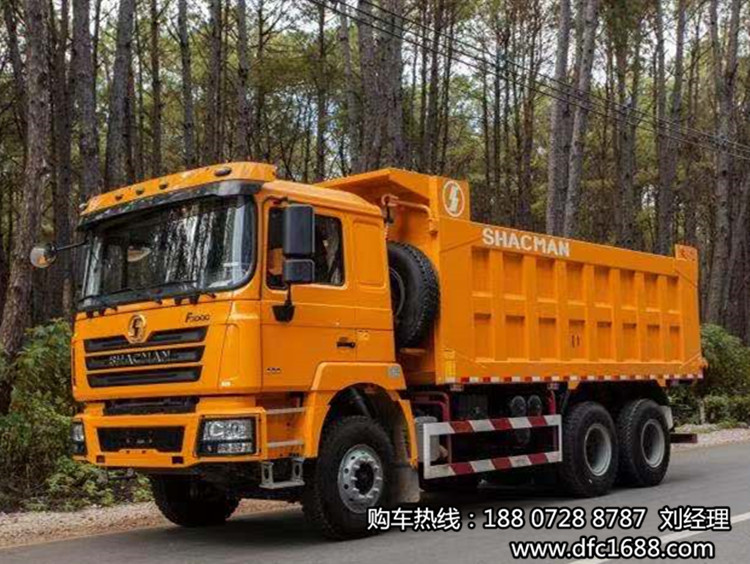

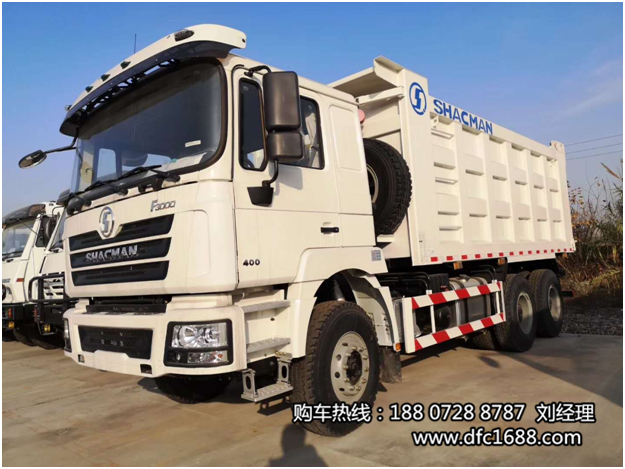

國產6x6全驅越野自卸車出口價格六驅越野自卸車價格

訂購熱線：188 0728 8787

產品介紹

Driving type驅動方式		6×6
Vehicle kerb mass (kg)整車整備質量		15800
Max. gradeability(%) 最大爬坡度		30
Overall dimensions (mm) 外型尺寸 Length長×Width 寬×Height高		920024903500
Wheel base (mm)軸距		4375+1400
Engine發動機		WP10.380
Horse power 馬力		380
Displacement(L)排量		9.769
Fuel tank capacity (L)油箱		400L aluminium tank
Tyre輪胎		12.00R20
Gearbox變速箱	Transmission變速箱	12JSD200T-B power take-off, 12 forward speeds, 2 reverse speeds. 12個前進擋，2個后退擋
	Max. torque (N.m)最大扭矩	2000
Front axle前軸		MAN 9T front axle 9噸
Drive axle 驅動橋		MAN 16T×2 double reduction driving axle 16噸
Frame type and specification 車架型式及規格		850×300（8+7），直縱梁 straight beam.
Suspension 懸架		Front and rear multiple leaf-springs, four main springs+ four U-type bolts 前后多片簧,四主片+四騎馬螺栓
Cab駕駛室		D’LONG F3000 lengthened flat cab, Air suspension driver’s seat, 4-point hydraulic suspension cab, one sleeping bed, A/C, Electric window machine, Electric flip ,metal bumper、Front headlight and rear taillight protection grid, water tank protection grid, oil-bath air filter F3000加長平頂駕駛室、空氣主座椅、四點液壓懸浮駕駛室、單臥鋪、電控自動恒溫空調、電動搖窗機、手動翻轉、金屬保險杠
Platform dimentions(mm) 貨箱規格		長度6.0米、寬度2.35米，高1.5米，板材厚度：邊8底10
